6 Series Kanga Compact Loaders

*Tipping load and Rated Operating Capacity (ROC) have been determined to ISO 14397-1 though the values shown here need to be adjusted for specific attachments. Refer to the section of the Operators Manual “Practice Safety at All Times” for Tipping Load and ROC values for the range of Kanga bucket and fork attachments. Note that ROC is 50% of the Tipping Load for wheel loaders and 45% for Kanga “over tire track” loaders.

PW628 GAS POWERED MINI LOADER

ALSO AVAILABLE IN DIESEL

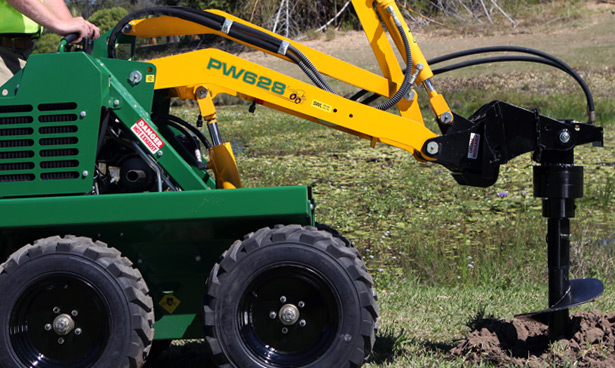

The PW628 gas powered mini loader comes with large 23″ tires for better ground clearance, faster ground speed, and high puncture resistance. Perfect for all-terrain, with its independent 4-wheel hi-torque drive system which allows travel over the most undulating places. With a hydraulic system pressure of up to 3000 psi, the PW628 mini loader comes standard with a Honda GX690 gas engine, ensuring incredible power and durability - A popular choice for rental yards and general contractors. With many attachment, and tailored machine options available, you will have the leading edge within your industry.

REQUEST A DEMO DOWNLOAD BROCHURE FINANCE OPTIONS

LOADER MODEL	PW628
ENGINE TYPE	Honda GX690 Gas
TIPPING LOAD*	955 lbs (no bucket)
MACHINE WEIGHT	1965 lbs (no operator / bucket)
MAXIMUM OPERATING HEIGHT	98.8" (with bucket)
OVERALL WIDTH	40.6"
GROUND CLEARANCE	7.3"
TRAVEL SPEED	4.3 mph

Download Brochure

Requesting a brochure for: 6 Series Kanga Compact Loaders

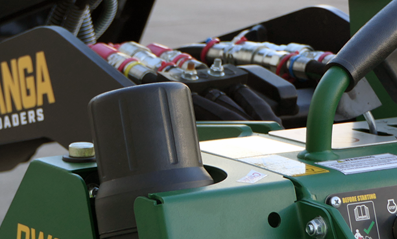

FULL-FLOW AUXILIARY HYDRAULICS

Full-flow auxiliary hydraulics with independent spool and cylinder valving. This enables operators to connect hydraulic attachments with extra features; such as brooms with power angle functions. Designed to give you the leading edge, we offer custom-built industry-specific packages to suit your individual needs.

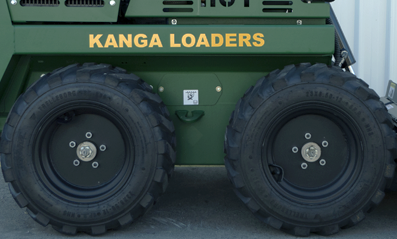

4 ENCLOSED HIGH TORQUE HYDRAULIC WHEEL MOTORS

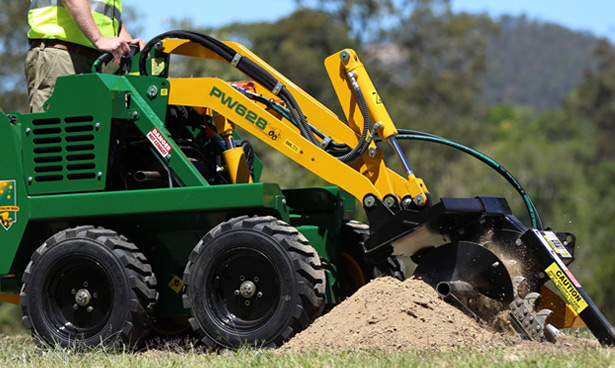

Four high torque hydraulic wheel motors deliver effective performance when breaking ground and trenching. The enclosed motors are positioned to prevent damage to the motor, yet can be easily accessed for maintenance.

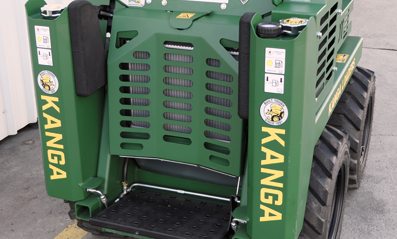

OPERATOR SAFETY CELL

A large operator platform allows a wider stance, improves safety, and reduces fatigue. A safety cell ensures the operator is enclosed within the operating platform, with side bump protection to provide additional support on rough terrain.

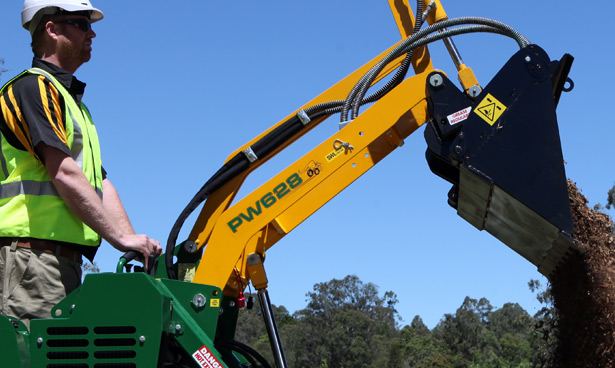

SELF-LEVELLING BUCKET

Safer, faster, and easier to operate, as the loader arms can be raised and lowered without the danger of load spillage. Experience superior control when lifting or filling the bucket to its maximum capacity.

SOFT-TOUCH CONTROLS

Superior operator ergonomics – Raised controls to reduce operator reach and fatigue
Superior safety – Most responsive, stable, and controlled steering
Two-hand operation for fast proficiency
Hydraulic design – Allows for minimal training to get the operator to maximum efficiency, and operate attachments

RUPTURE-RESISTANT FUEL TANKS

Twin long-range heavy gauge steel fuel tanks, which allow many hours of operation. You can work the entire day without the hassle of refueling.

UNMATCHED QUALITY

Each Kanga is designed and manufactured for durability, reliability, productivity, less environmental impact, and most importantly - a long life! With over 40 years of manufacturing and testing mini loaders, we know what our customers are looking for which is why we don’t use any plastic panels or gas tanks.

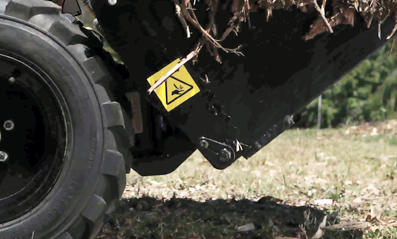

GROUND CLEARANCE & LOW CENTER OF GRAVITY

When the loader arms are lowered to rest on the frame, the bucket can be rolled back to carry a full load, and still maintain ground clearance and a lower center of gravity.

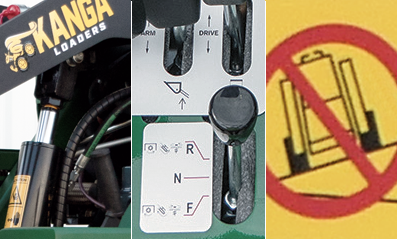

SAFETY RELIEF VALVE / AUXILIARY & OIL CUT-OUT

The lift circuit is set at 2400psi to protect the operator from overloading the machine. As a standard safety feature, the loader’s hydraulic flow to the attachment neutralizes when no operator is present on the operator platform. The Honda engine also comes standard with an oil cut-out switch, so when the mercury sensor detects low oil level, it will immediately shut off to protect the engine.

OPTIONAL EXTRAS

Health & safety - LED headlights, horn, rear stop light, handbrake, emergency stop button
Battery isolator switch, motion alarm
Case drain kit, oil cooler
Trenching valve
Rear dig legs
Color customization
