PW220PW220

*Tipping load and Rated Operating Capacity (ROC) have been determined to ISO 14397-1 though the values shown here need to be adjusted for specific attachments. Refer to the section of the Operators Manual “Practice Safety at All Times” for Tipping Load and ROC values for the range of Kanga bucket and fork attachments. Note that ROC is 50% of the Tipping Load for wheel loaders and 45% for Kanga “over tire track” loaders.

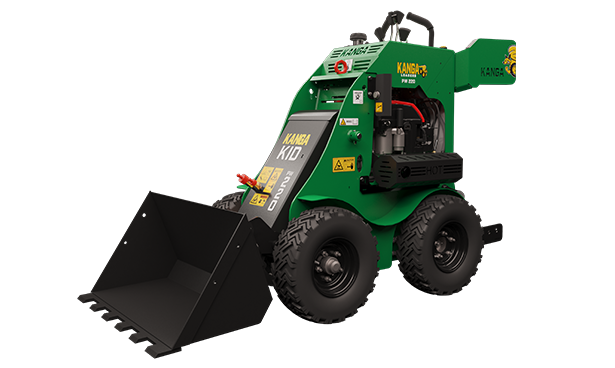

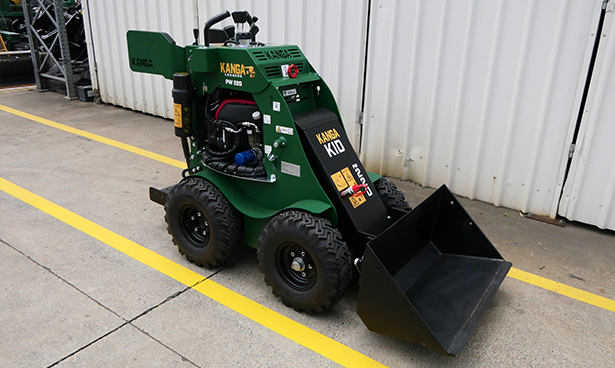

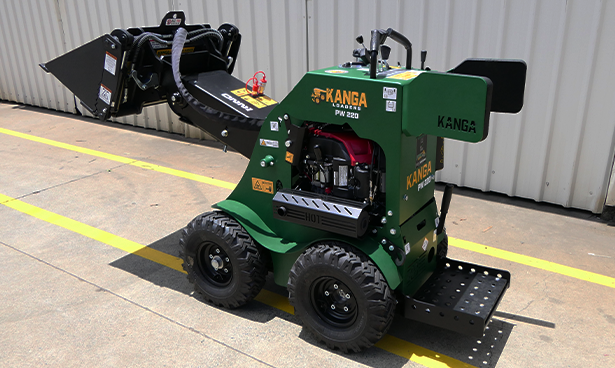

PW220 WHEELED

ALSO AVAILABLE IN A TRACKED CONFIGURATION
The Kanga Kid is the world’s smallest multi-task compact skid steer loader, with a special range of attachments that completes the toughest jobs quickly and easily. With residential site access becoming increasingly smaller, the 2 Series is the popular choice among landscapers, pool installation, builders, contractors, electrical and many more.
LOADER MODEL PW220
ENGINE TYPE Honda GXV630 (Gas)
TIPPING LOAD* 785 lbs
MACHINE WEIGHT 980 lbs
MAXIMUM OPERATING HEIGHT 58.7"
OVERALL WIDTH 29.7"
GROUND CLEARANCE 6.1"
TRAVEL SPEED 3.4 mph

NARROW ACCESS

With an overall width of 30.2in (wheeled) / 32.3in (tracked), you can access the worksite through side gates and standard doorways.

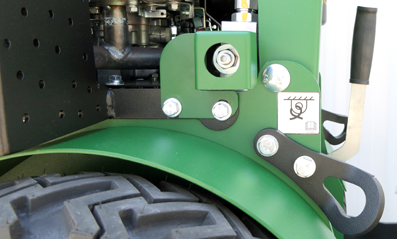

QUICK HITCH

Specially designed for the 2 Series Loaders.

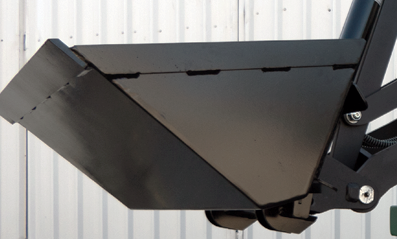

SELF-LEVELLING BUCKET

Safer, faster, and easier to operate, as the loader arms can be raised and lowered without the danger of load spillage. Experience superior control when lifting or filling the bucket to its maximum capacity.

SAFETY RELIEF VALVE

The lift circuit is set at 1500psi to protect the operator from overloading the machine, and is located on the machine's rear, for ease of access.

SOFT-TOUCH CONTROLS

Designed by Kanga, our mini loader soft-touch controls are the softest, and most ergonomic control system in the market.
  • Superior operator ergonomics – Raised controls to reduce operator reach and fatigue
  • Superior safety – Most responsive, stable, and controlled steering
  • Two-hand operation for fast proficiency
  • Hydraulic design – Allows for minimal training to get the operator to maximum efficiency, and operate attachments

UNMATCHED QUALITY

Each Kanga is designed and manufactured for durability, reliability, productivity, less environmental impact, and most importantly - a long life! With over 40 years of manufacturing and testing mini loaders, we know what our customers are looking for which is why we don’t use any plastic panels or gas tanks.

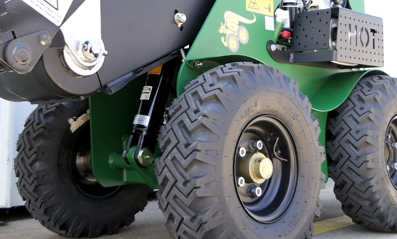

OVER 6" OF GROUND CLEARANCE WHILE MAINTAINING A LOW CENTER OF GRAVITY

When the loader arms are lowered to rest on the frame the bucket can be rolled back to carry a full load while maintaining ground clearance and a lower center of gravity.

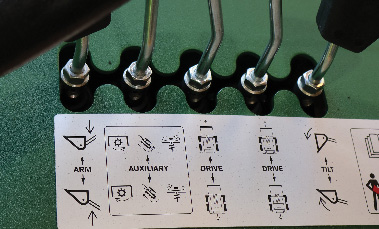

SAFETY AUXILIARY CUT-OUT

Power to the attachment is cut when the controls are released, ensuring maximum safety for the operator.

OPTIONAL EXTRAS

  • Health & safety - LED headlights, horn, rear stop light, handbrake, emergency stop button
  • Battery isolator switch, motion alarm
  • Case drain kit, oil cooler
  • Trenching valve
  • Rear dig legs
  • Color customization
